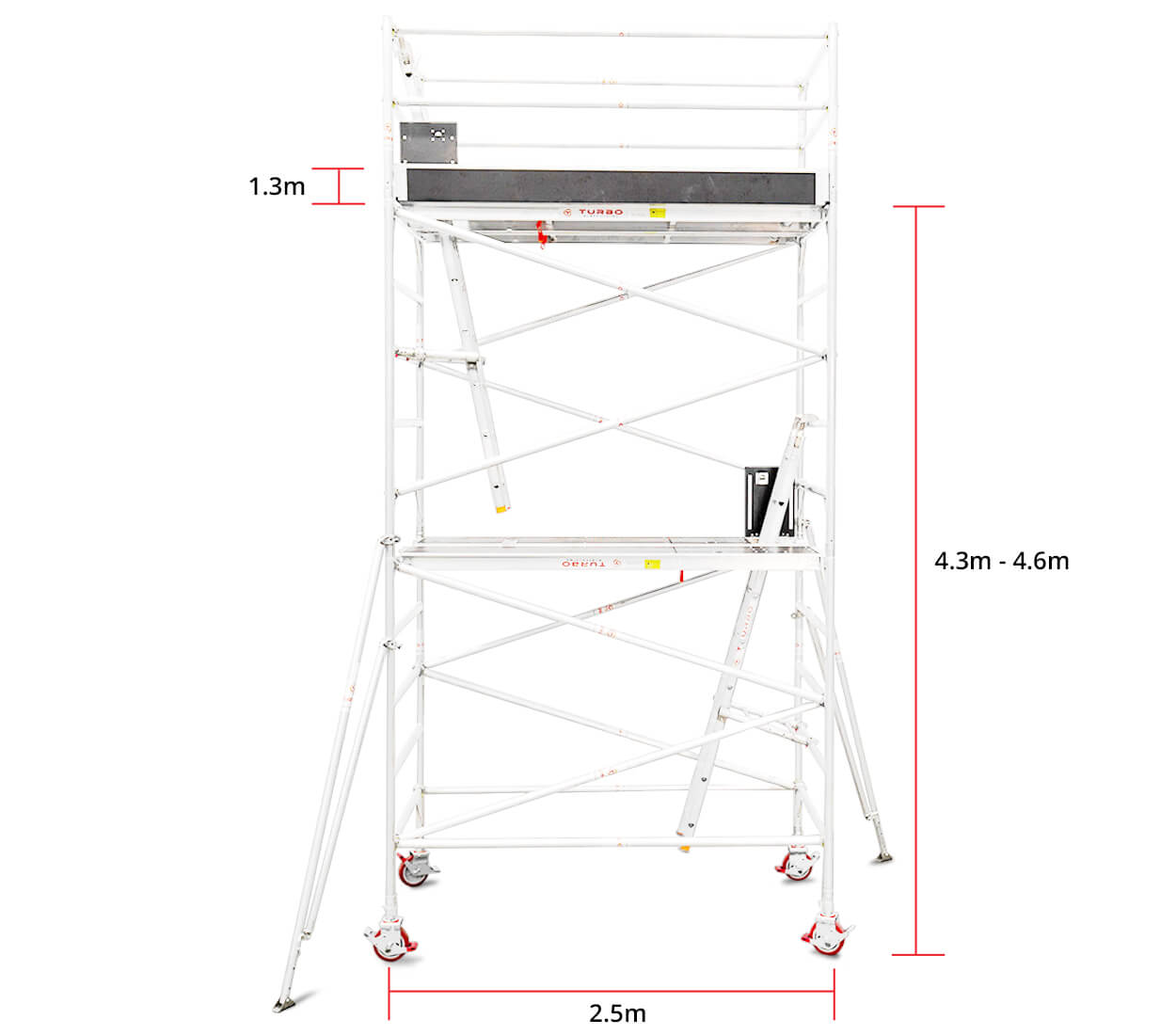

- Width: 1.3m
- Length:2.5m
- Height:4.3 - 4.6m
- Description
- Tower Inclusions
- Assembly Video
Turbo Scaffolding Sydney has a range of wide aluminium scaffold towers for every kind of job that requires a stable platform at height. Perfect for the small business owner or home handyman. Electricians, Roofers or Painters will definitely benefit from our range of wide aluminium towers.
At a little above 4mtr you will need a qualified scaffolder to erect this aluminium tower. Providing enough space for more than 1 worker and a variety of tools, our range of wide scaffolds will stand the test of time.
All our aluminium scaffold is erected piece by piece and the heaviest piece is only 22.60kg’s. This makes for easy storage and transport in a van or ute. The total weight of the scaffold is 262.00kg’s with its It has a generous width of 1.3Mtrs.
A SWL of 450kg’s makes it versatile and safe. Turbo Scaffolding recommends 2 people for erection and stripping.
Delivery available in Sydney, Melbourne, Brisbane and Perth metro region only or you can arrange for a pick up from one of our Sydney, Melbourne, Brisbane or Perth location warehouse.
 |

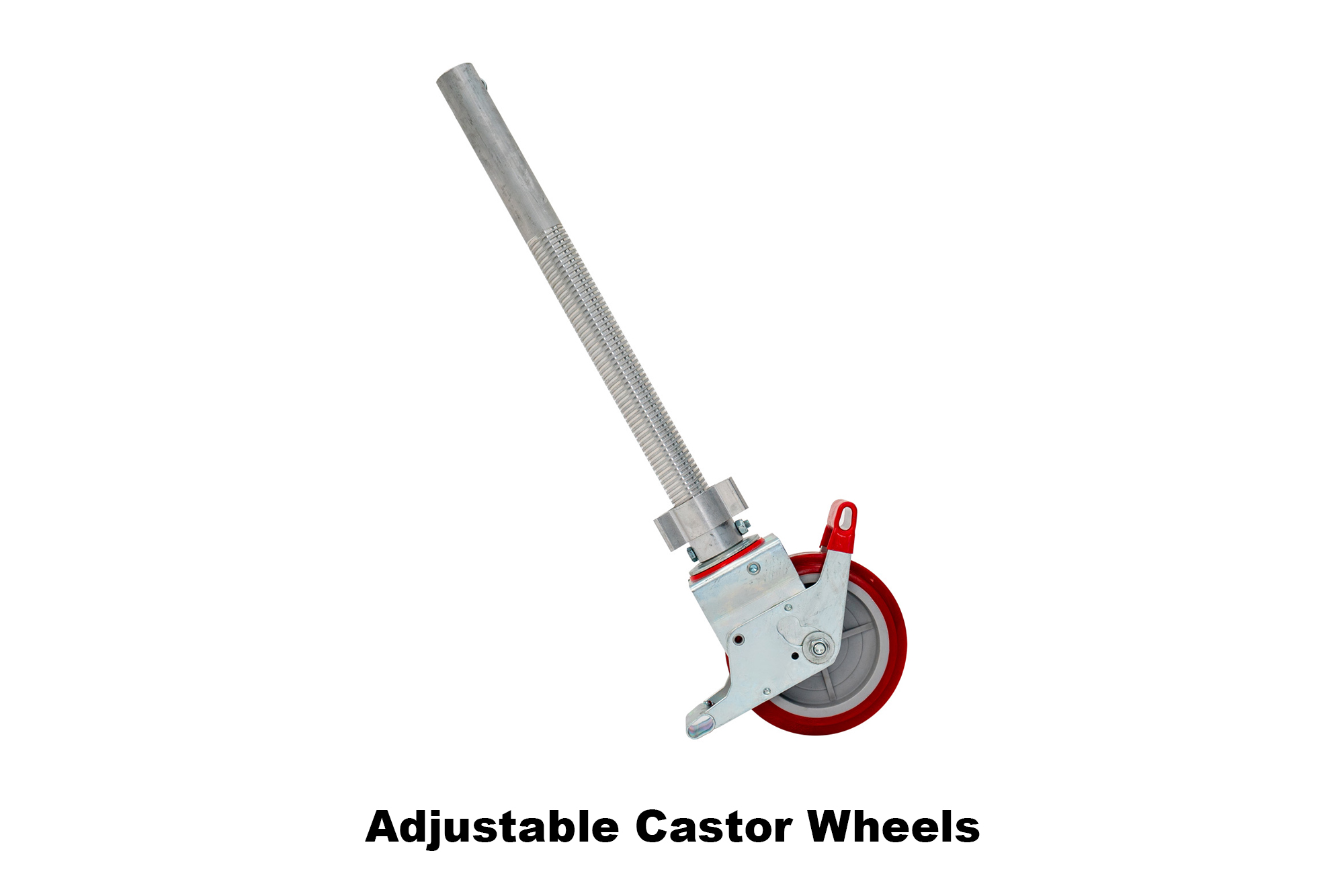

Adjustable Castor Wheels
Our mobile scaffold castor wheels are made of polyurethane and 200mm thick. They have a safe working load of 225kgs and are fitted with a working locking system to prevent rolling or any movement when braking. All wheels feature 360 degree movement to provide easy transport. |
 |

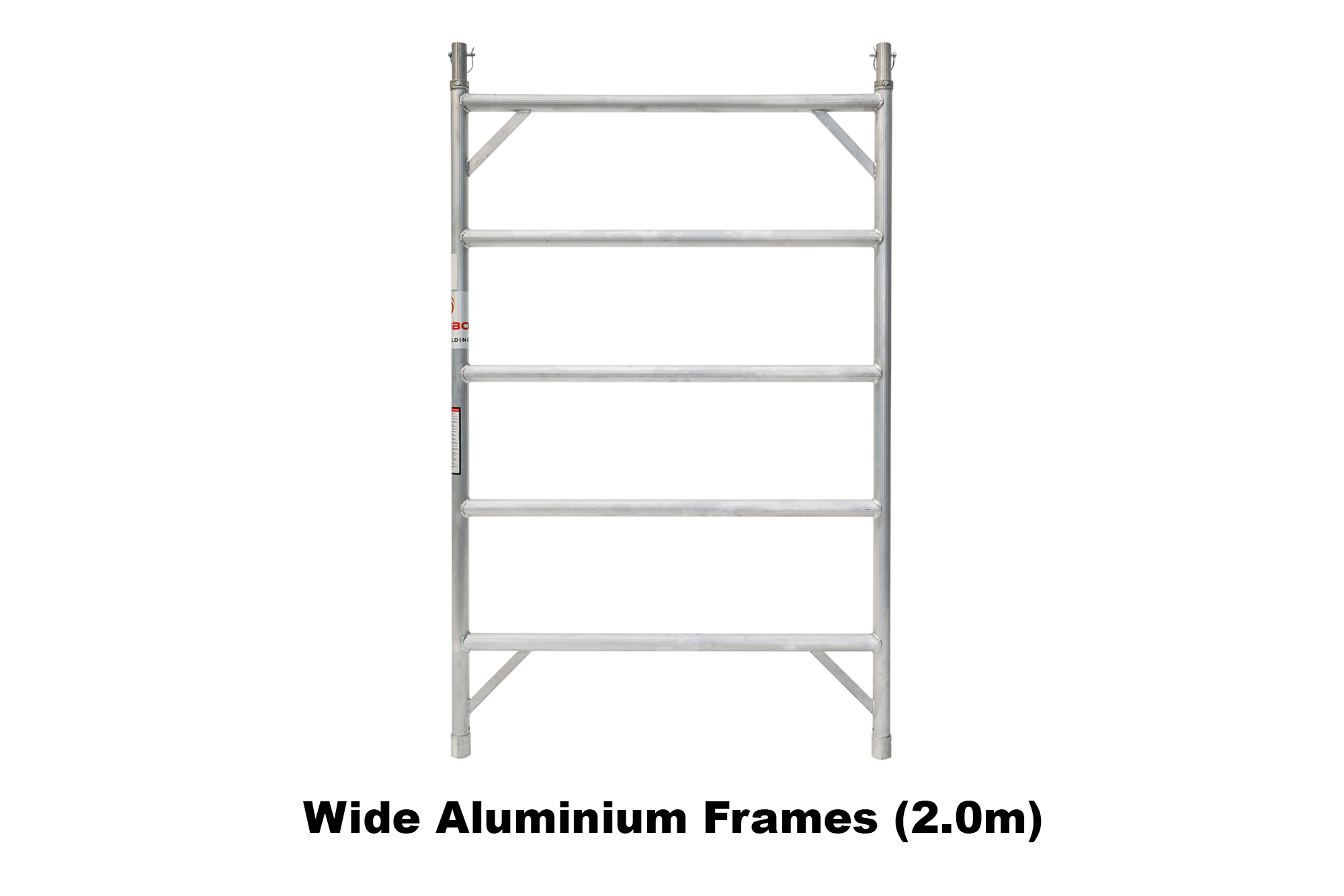

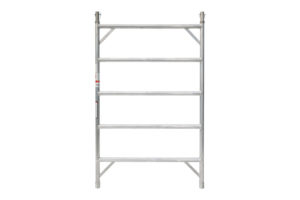

Wide Aluminium Frames (2.0m)
The larger of the frames for the wide aluminium tower with an overall height of 2.0m. The top of the frames have a spigot which can be used to insert into other frames to extend. The locking pin can be applied for quick safety measures so there is no movement. |
 |
Wide Guard Rail
This guard rail system is the top frame to provide safety atop the standing structure. The frame is durable and have 2mm wall thickness on the aluminium tube. This guard rail is suited for the wide tower and has an overall height of 1m. |
 |
Horizontal Brace (Gold)
The horizontal brace is to provide stability to the structure from end to end. The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity.
|
 |

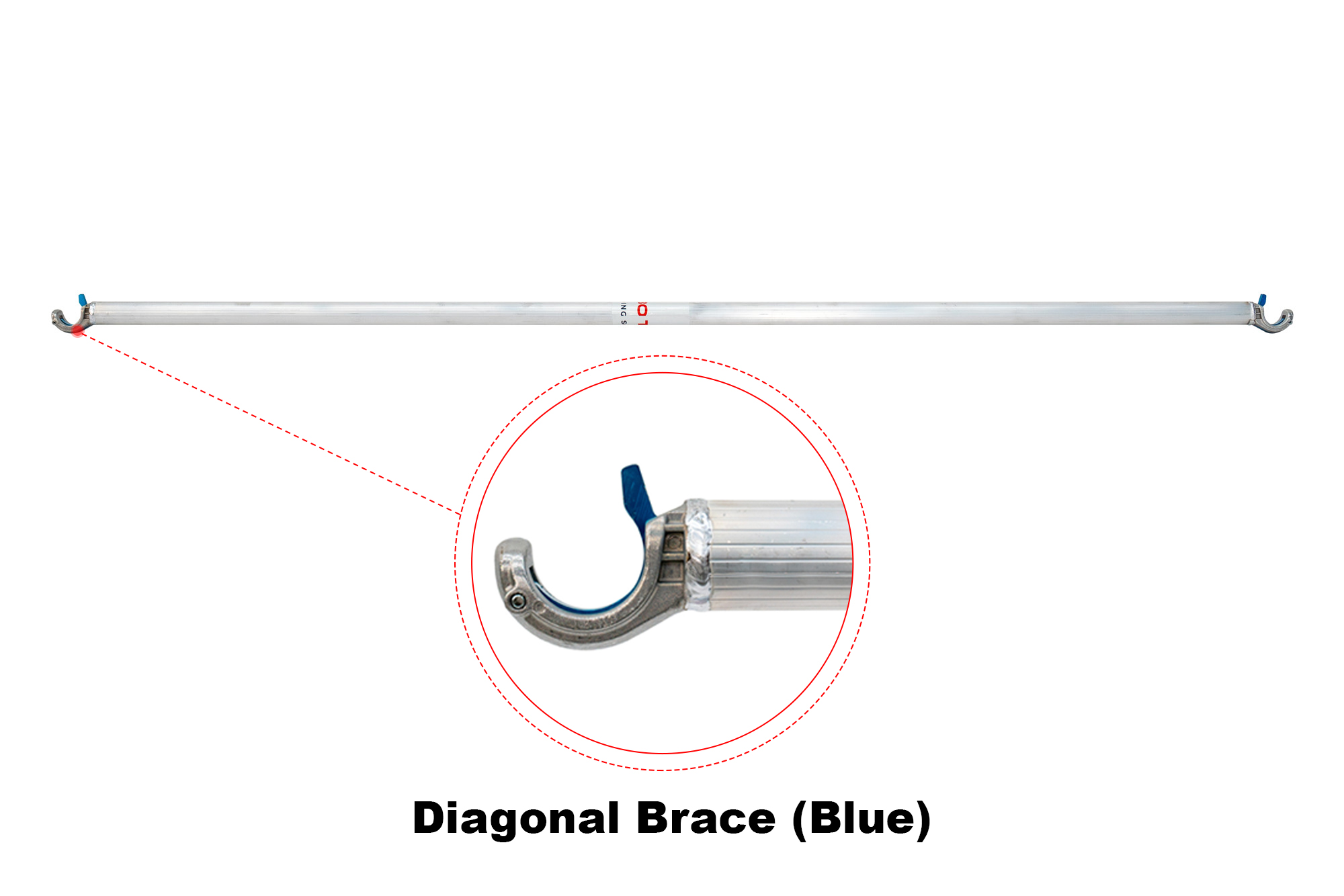

Diagonal Brace (Blue)
The diagonal brace is to provide more stability to the structure than the horizontal brace. The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity. |
 |
Platform with Hatch Deck
The platform is manufactured with marine plywood and has an safe but simple ladder hatch, which provides safe access to passengers between levels. |
 |
Aluminium Scaffold Ladder 4m
Our Aluminium ladders feature an offset brace to secure ladders on certain angles while hooking into the scaffold frames. The ladders come in 4m sizes. |
 |
S3 Stabilisers, 2300mm to 3000mm
Stabilizer legs attach to the scaffold via couplers to help stabilize the structure and provide support. The stabilizers have the ability to alter the range required. The rubber soles on the swivel legs provide extra support and grip. |
 |
1.3m Toe Board
Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects. |
 |
2.5m Toe Board
Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects. |

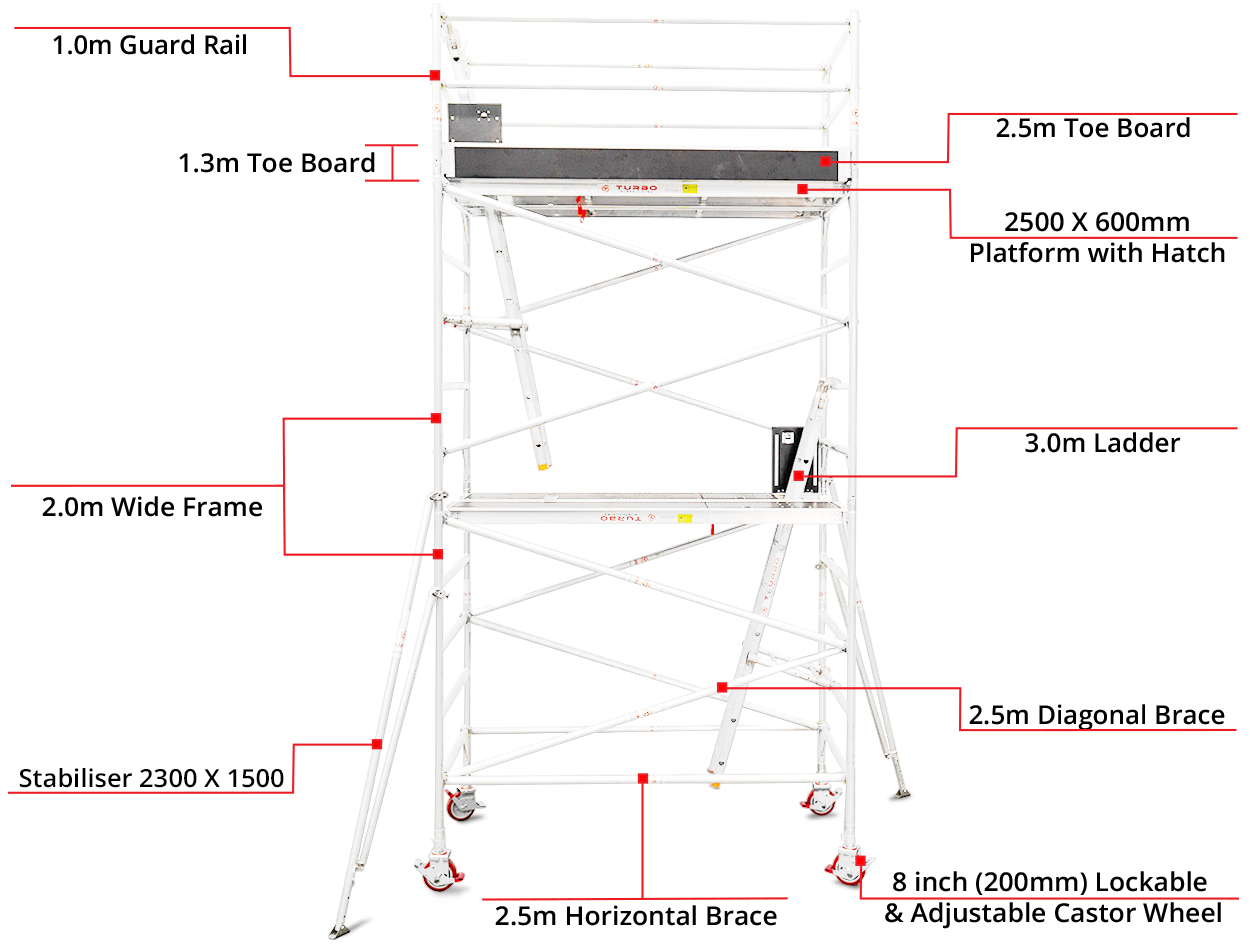

Toe Board
Platform
Diagonal Brace
Frame
Safety Pin
Ladder
Stabilisers
Castor Wheel
